Cambridge-based BiologIC Technologies is a pioneer in powerful Industry 4.0 digital architectures for radically different and highly integrated automation in synthetic biology — the field of science that involves redesigning organisms for useful purposes by engineering them to have new abilities.
Engineering biology is conventionally a complicated and expensive process, requiring large laboratories and highly skilled scientists mixing and moving liquids to different robots that undertake specific, sometimes repetitive tasks. BiologIC’s aim is to significantly simplify and condense existing laboratory processes by creating a “Desktop Computer of Life Sciences,” mirroring the way in which large mainframe computers eventually gave way to smaller, more efficient desktop PCs. Rather than processing information, BiologIC’s products will process biology. Once developed, the company hopes this device will ultimately drive the next wave of biological innovation.
But the cost and time implications of bringing it to reality with a working prototype using traditional manufacturing was the stumbling block. After researching the options available to the company, BiologIC’s three co-founders discovered that 3D printing could hold the key to unlocking their vision. Having tested a number of technologies, the team decided to invest in a full-color, multi-material J826™ Prime 3D Printer from Stratasys’ local partner, Tri-Tech.

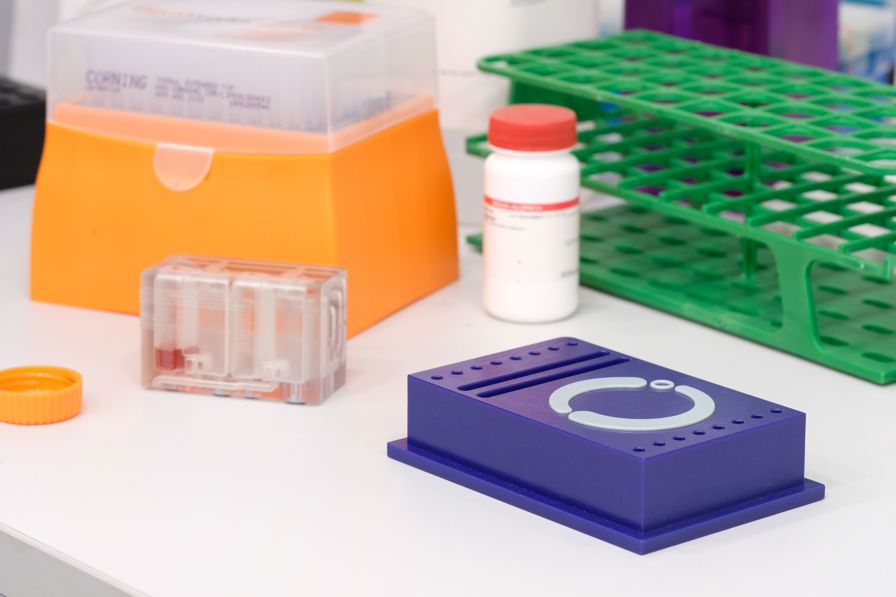

The creative freedoms delivered by Stratasys’ full-colour, multi-material 3D printing technology enables BiologIC to accelerate its design process with zero restrictions and enabled the team to achieve the complexity of the current design. For example, the ability to print in transparent VeroUltra™Clear material, with its glasslike clarity, is essential for visualization of the cartridge’s inner workings so that scientists can confirm the biology is high-quality and performing as designed. Additionally, within the structure, the precision movement of fluids is key to controlling the biology. And the ability to print in flexible photopolymers like Agilus30™, has allowed the company to add a level of functionality within its bio-processing unit that would have been otherwise impossible.

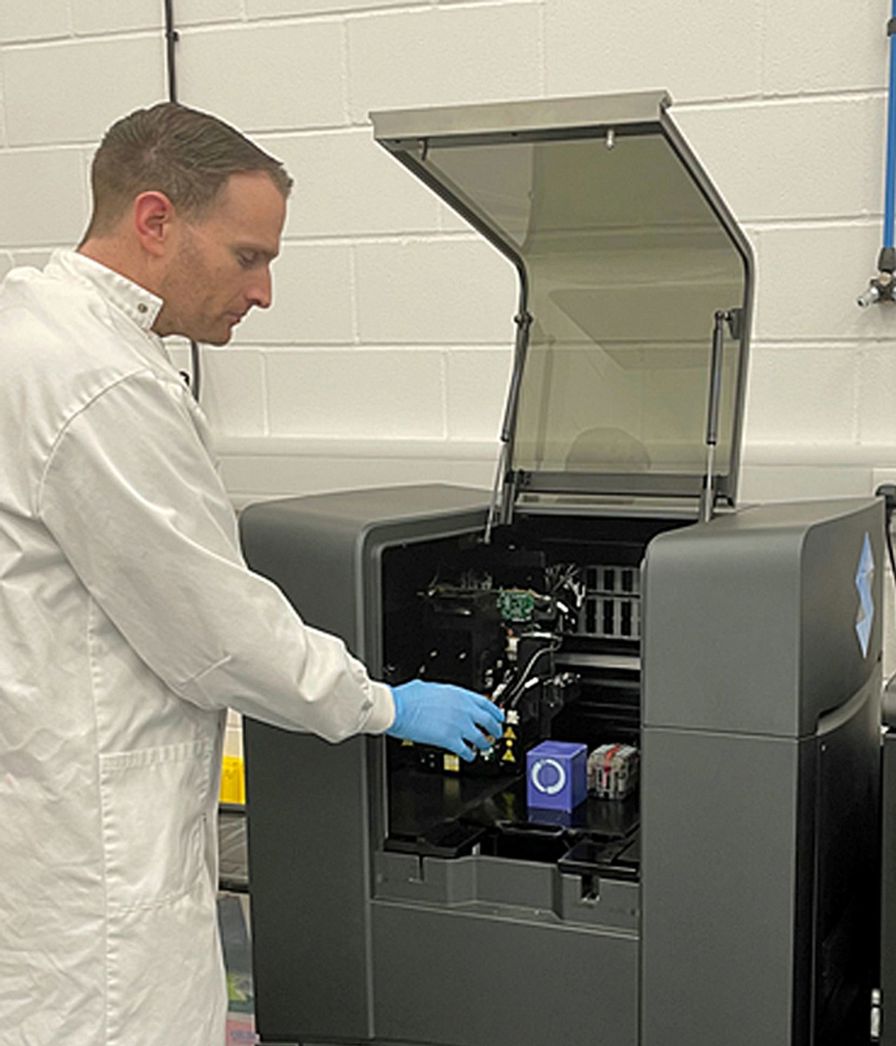

The design of the unit, around the size of a Rubik’s Cube, currently combines four materials, but the team hopes to shortly utilize the full material potential of the J826 Prime.
It is not just the technological capabilities that have been essential to helping BiologIC realize their vision, but the business potential too.
According to Richard Vellacott, co-founder and CEO of BiologIC, 3D printing has enabled the team to turn the traditional life-sciences business model on its head.
“Traditionally, technology companies have to raise a lot of capital from investors to fund a number of years of technology development in the belief that there will be a viable market for their product when it’s ready to be commercialised,” Vellacott explains.
“However, the J826 Prime has allowed us to collaborate directly with innovative customers from day one to physically demonstrate and co-develop product concepts to ensure they fit their needs, avoiding the need for us to have to raise investment,” he adds. “This, we believe, has never previously been achieved with other traditional life science technology R&D processes. And even though our technology development is still in the early phase, the J826 Prime enables our digital business model to deliver exponential growth.”
For BiologIC, the expectation is for a product that will be scaled commercially within two years, as opposed to five to 10 years using conventional manufacturing methods — an improvement in efficiency in excess of 100 percent. The breadth of product range being fabricated using the very same J826 Prime platform also includes a broad range of applications both in life sciences and beyond. This level of flexibility has led directly to an early adopter program with other high-science and biology companies, resulting in faster innovation and greater success overall.
Having almost completed the R&D process, the company is confident that the business model can completely exploit the key benefits of 3D printing, namely manufacturing such cartridges on-demand at a price point and significant scale that benefits many customers and society as a whole.

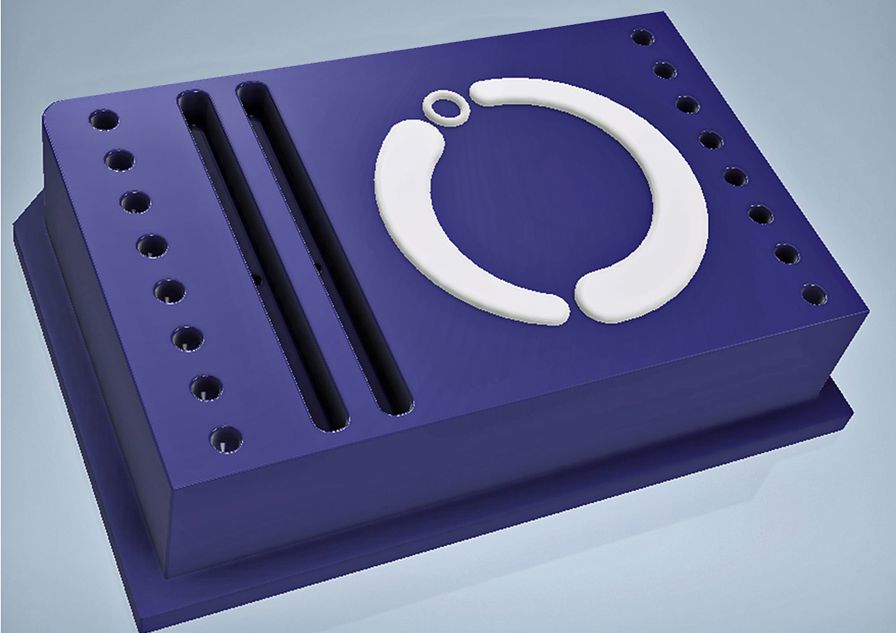

BiologIC is not only using its J826 Prime for working prototypes during the R&D process, but also with its fundamental ability to enable design ingenuity, especially the creation of highly complex multi-material internal geometries. The solution will also be used to manufacture the final product.
“We need a technology that enables us to be lean and agile. Stratasys’ PolyJet™ 3D printing is the best in the game, and importantly the J826 Prime gives us access to this technology at a price point and physical size attractive for a startup,” Vellacott adds.
“Without the J826 Prime, we wouldn’t be moving ahead as a company as we wouldn’t have a product; it’s as simple as that. This 3D printer is at the heart of everything we do and will be pivotal in enabling us to realize the next step in our journey — scaling-up the product for other applications and working with Stratasys to expand into manufacturing in 2021,” he concludes.
