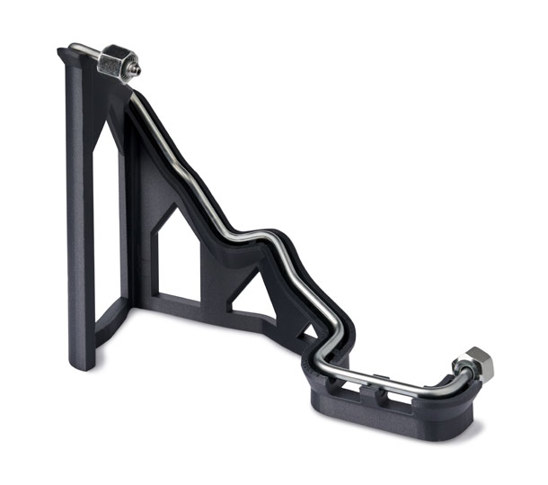

Over 50% stiffer & 15% stronger than standard ABS. FDM ABS-CF10 replaces metal with 3D printed carbon fiber tools for strong, rigid end effectors and fixtures that don’t flex under load.

ABS-CF10

FDM Thermoplastic
The benefits of ABS with the stiffness of carbon fiber.

Stratasys ABS-CF10 combines the benefits of a carbon fiber filament with the desirable mechanical properties and ease of use of ABS 3D printing material. The result is an engineering thermoplastic with superior strength and rigidity for factory floor tooling applications.

Significantly reduce your tooling lead time by 3D printing them with Stratasys ABS-CF10 instead of machining. Depending on the application, carbon-reinforced ABS can replace metal for lighter, more ergonomic tooling. Combined with soluble support, Stratasys ABS-CF10 can achieve complex geometries that aren’t possible with machining.

Typical Applications

icon Tooling

Tooling

Production and assembly, health and safety, bridge tooling.

Jigs and fixtures

Jigs and Fixtures

Drill guides, end effectors, locating tools.

Performance Properties

flexural modulus

Flex Modulus (Stiffness)*

  • ABS-CF10: 3.76GPa (545)
  • ABS-M30: 2.22GPa (323)
  • ASA: 1.98GPa (287)
  • Diran: 1.85GPa (268)


*XZ orientation

Tensile

Ultimate Tensile Strength*

  • ABS-CF10: 37.7MPa (5,460psi)
  • Diran: 40.4MPa (5,860psi)
  • ABS-M30: 28.1MPa (4,080psi)
  • ASA: 31.9MPa (4,630psi)


*XZ orientation

E9A7BchKovUxXcRpYLucFg

Compatible 3D Printers

f270

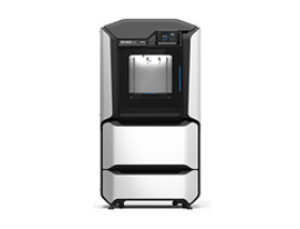

F123 Series

Perfect for the office or the shop floor, F170 and F370 printers combine easy design-to-print operation with reliable, industrial-grade results.

Learn More
F123-3D-printer-series

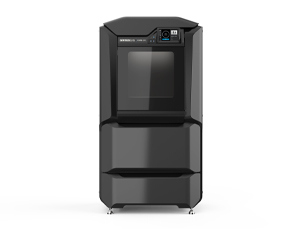

F123CR Series

Composite-ready, F190CR and F370CR 3D printers offer high-strength carbon fiber materials in a reliable, user-friendly industrial printer platform.

Learn More

FDM ABS-CF10 Material Gallery

Over 50% stiffer & 15% stronger than standard ABS.

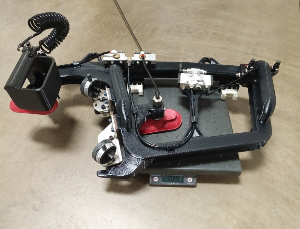

FDM ABS-CF10 replaces metal with 3D printed carbon fiber tools for strong, rigid end effectors and fixtures that don’t flex under load. Lighter tools mean better ergonomics for workers, less power needed to move robotic end effectors.

Over 50% stiffer & 15% stronger than standard ABS. FDM ABS-CF10 replaces metal with 3D printed carbon fiber tools for strong, rigid end effectors and fixtures that don’t flex under load.

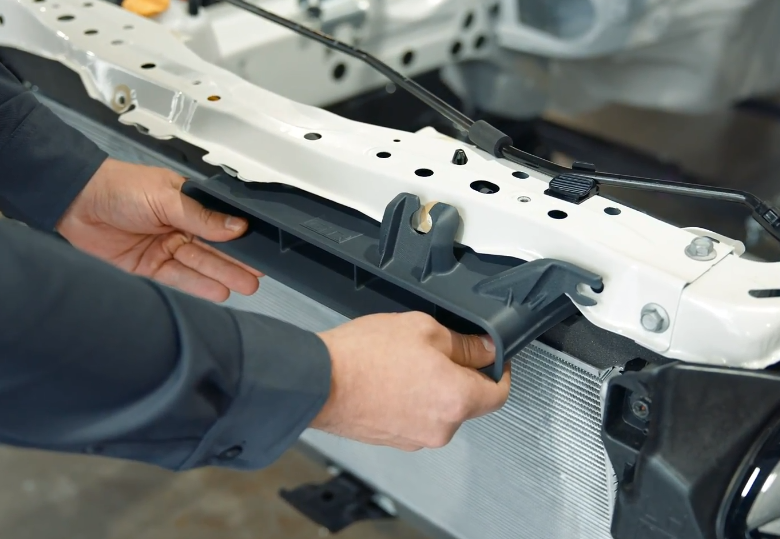

This FDM ABS-CF10 alignment fixture is 50% lighter than its aluminum counterpart. Lighter tools mean better ergonomics for workers, less power needed to move robotic end effectors.
FDM ABS-CF10 - The easiest way to 3D print with carbon fiber. Combined with soluble support, you get in hours what would take days to traditionally machine.
